What Are Flexible Couplings?
Flexible couplings connect two shafts while accommodating misalignment, absorbing shock, and transmitting torque without requiring perfectly rigid shaft alignment.
How flexible couplings differ from rigid couplings
-
Rigid coupling: locks two shafts together like one solid shaft; virtually no flexibility.
-
Flexible coupling: allows controlled movement to protect bearings, seals, and shafts from misalignment and vibration loads.
Read entire types of mechanical couplings page here.
Rigid vs Flexible Coupling Comparison
| Feature | Rigid Coupling | Flexible Coupling |
|---|---|---|
| Alignment requirement | Very high | Medium / Low |
| Vibration damping | None | Yes |
| Maintenance cost | Low | Medium |
| Typical applications | Precision shafting | Motors / pumps / compressors |
The 3 core functions of flexible couplings
-
Misalignment compensation (angular / parallel / axial, depending on type)
-
Vibration damping (reduces resonance, noise, fatigue)
-
Overload protection (many designs reduce shock peaks to protect equipment)
Misalignment basics
Flexible couplings mainly deal with three misalignment types:
| Misalignment Type | What it means | Typical cause |
|---|---|---|
| Angular | Shafts meet at an angle (not colinear) | imperfect mounting, soft foot |
| Parallel (Offset) | Shafts are parallel but displaced | base shift, machining tolerance |
| Axial (End float) | Shaft distance changes along axis | thermal growth, thrust movement |
What Are the Different Types of Shaft Couplings?
The main types of flexible shaft couplings include jaw, disc, gear, grid, elastomeric (rubber), Oldham, and beam couplings—each suited to different torque, speed, damping, and misalignment requirements.

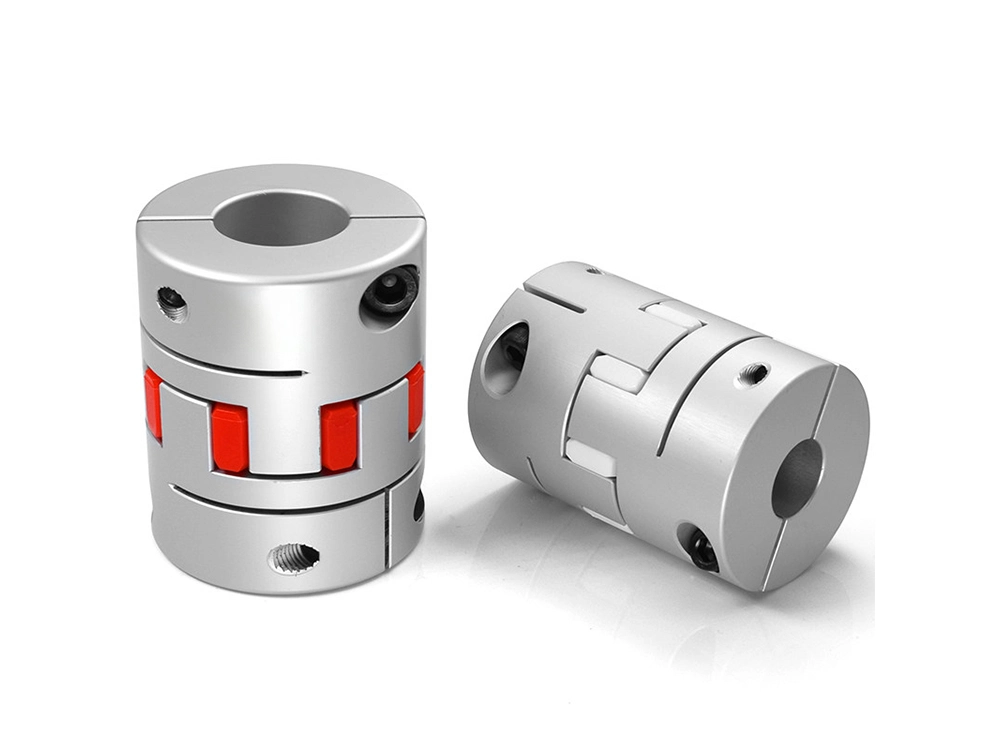

1. Jaw (Spider) Couplings
A jaw (spider) coupling uses two jaw hubs and an elastomer “spider” insert to transmit torque with high damping and moderate misalignment tolerance.
How it works (conceptual): Two metal hubs with jaws compress an elastomer spider; torque transfers through elastomer deformation (which also damps vibration).
Pros
-
High shock absorption and vibration damping
-
Handles angular + parallel misalignment (within rating)
-
Simple, cost-effective, easy insert replacement
Cons
-
Insert is a wear item (heat, oil, ozone affect life)
-
Not ideal for ultra-high precision torsional rigidity
-
Torque density lower than gear couplings at same size
Typical applications
-
Servo motors, general motor drives
-
Pumps, light-to-medium compressors
Chiheng CNC angle: custom aluminum/steel hubs + polyurethane spiders (hardness tuned to damping vs stiffness)
2. Disc Couplings
A disc coupling transmits torque through stainless disc packs for high torsional stiffness and high-speed precision, with limited damping.
Structure: Laminated disc packs bolted between hubs; flex comes from disc bending.
Pros
-
High torsional stiffness (control accuracy)
-
Great for high speed and dynamic balance
-
No elastomer wear in clean setups
Cons
-
Low damping (can pass vibration)
-
Often limited axial float—verify spec for thermal growth
-
Bolted joints need correct torque/inspection
Typical applications
-
High-speed turbines
-
Precision machinery, test rigs
Note: Many disc designs are angular-focused and don’t like large axial movement.

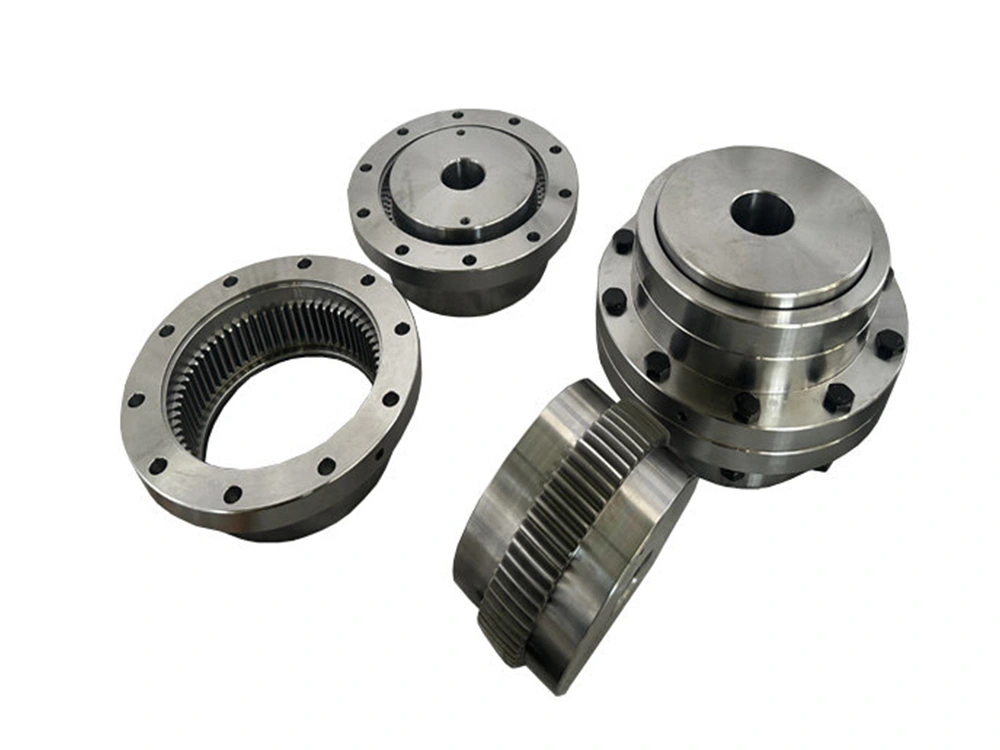

3. Gear Couplings
A gear coupling uses internal/external gear teeth (usually lubricated) to deliver very high torque capacity with multi-axis misalignment capability.
Principle: Crowned gear teeth and lubrication film allow misalignment while transmitting heavy torque.
Pros
-
High–very high torque density
-
Suitable for heavy duty cycles
-
Can accommodate multiple misalignment types (when maintained)
Cons
-
Needs lubrication + sealing (maintenance requirement)
-
Misalignment + poor lubrication accelerates tooth wear
-
Heavier/more complex than jaw/Oldham
Typical applications
-
Steel mills, heavy industry, crushers, mixers
-
High torque flexible shaft coupling use cases

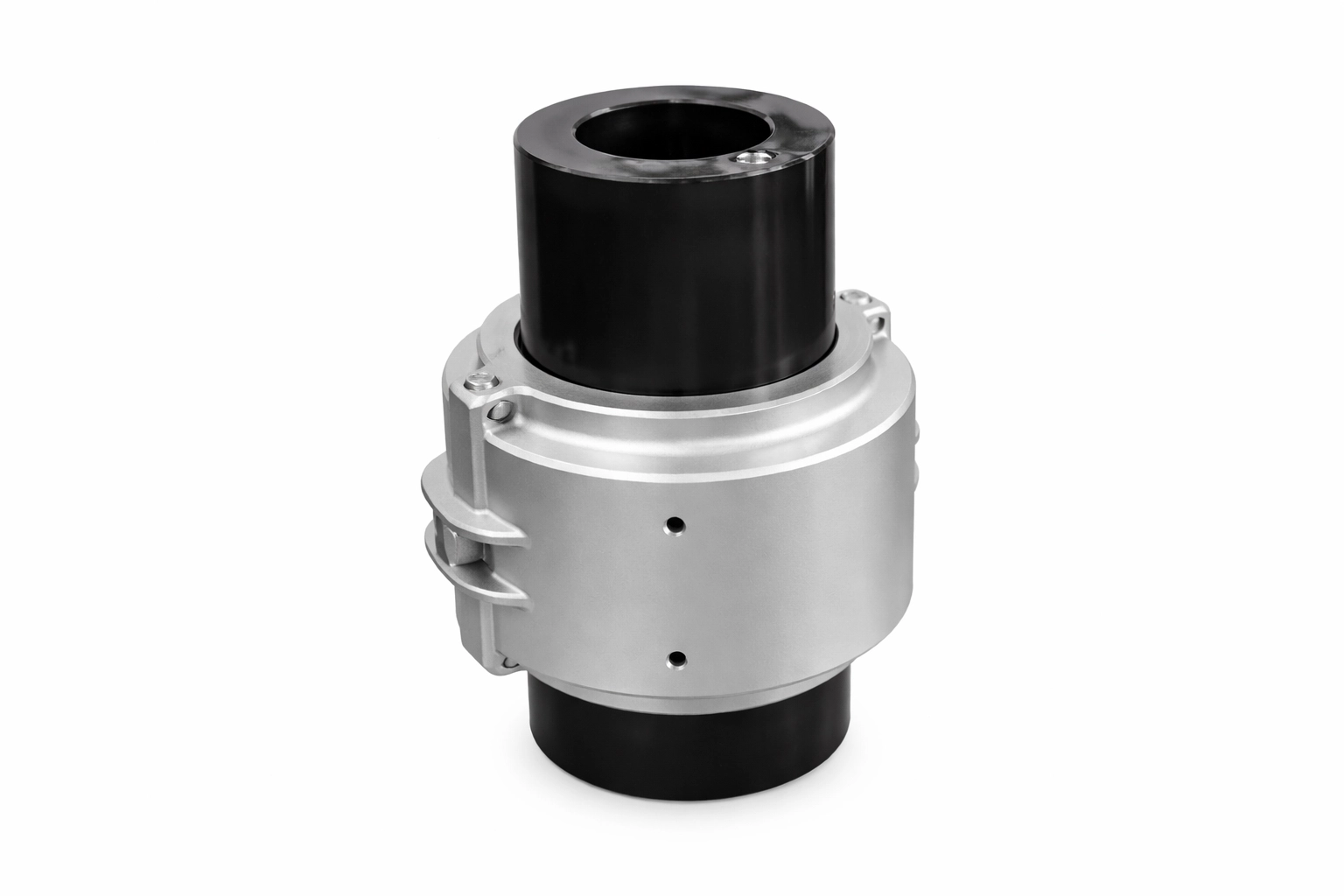

4. Grid Couplings
A grid coupling uses a spring-steel grid element to transmit torque while providing excellent shock-load damping for industrial drives.
Structure: Serpentine grid sits in hub grooves and flexes under load changes.
Pros
-
Excellent for shock loads and vibration damping
-
Medium–high torque capability
-
Rugged for plant environments
Cons
-
Often uses lubrication; periodic inspection helps reliability
-
Grid element can wear over time
-
Not as torsionally stiff as disc couplings
Typical applications
-
Fans, conveyors, compressors
-
Material handling systems with starts/stops

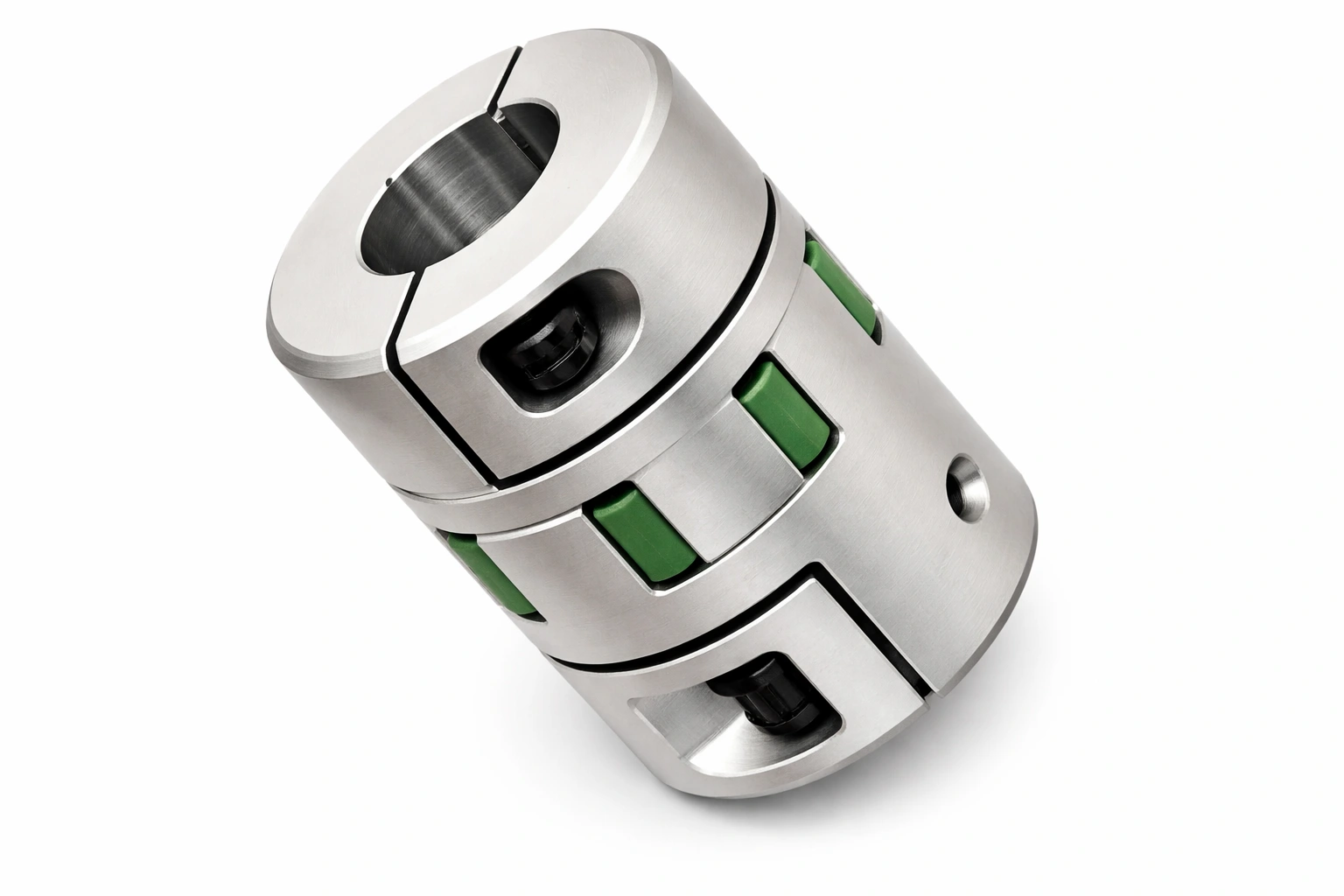

5. Elastomeric / Rubber Couplings
An elastomeric coupling uses rubber/urethane elements (tire/sleeve styles) to deliver very high damping and broad misalignment tolerance for general drives.
Common element types
-
Tire type: rubber tire bolted between flanges
-
Sleeve type: elastomer sleeve connects hubs
Pros
-
Very high damping (noise/vibration control)
-
Handles angular/parallel/axial misalignment (within rating)
-
Helps protect bearings/seals from shock and resonance
Cons
-
Elastomer ages (temperature, oil/chemicals, ozone)
-
Lower torque density than gear/grid
-
Element replacement is normal maintenance
Typical applications
-
Flexible couplings for motors
-
General industrial drives, conveyors, fans

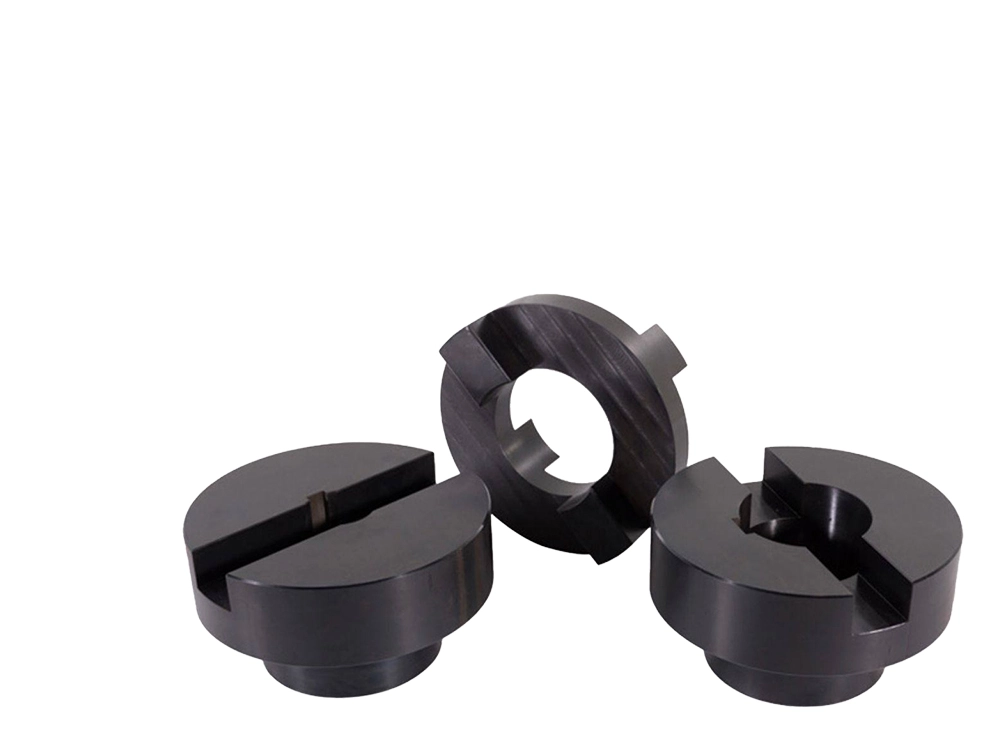

6. Oldham Couplings
An Oldham coupling is a three-piece coupling designed for high parallel offset misalignment using a floating center disc.
Structure: Two slotted hubs + a sliding floating disc.
Pros
-
Excellent parallel offset capability
-
Can provide electrical isolation (disc material dependent)
-
Compact and cost-effective for light duty
Cons
-
Low torque capacity
-
Center disc wears (sliding friction)
-
Not ideal for high shock loads
Typical applications
-
Encoders
-
Light-duty motion control

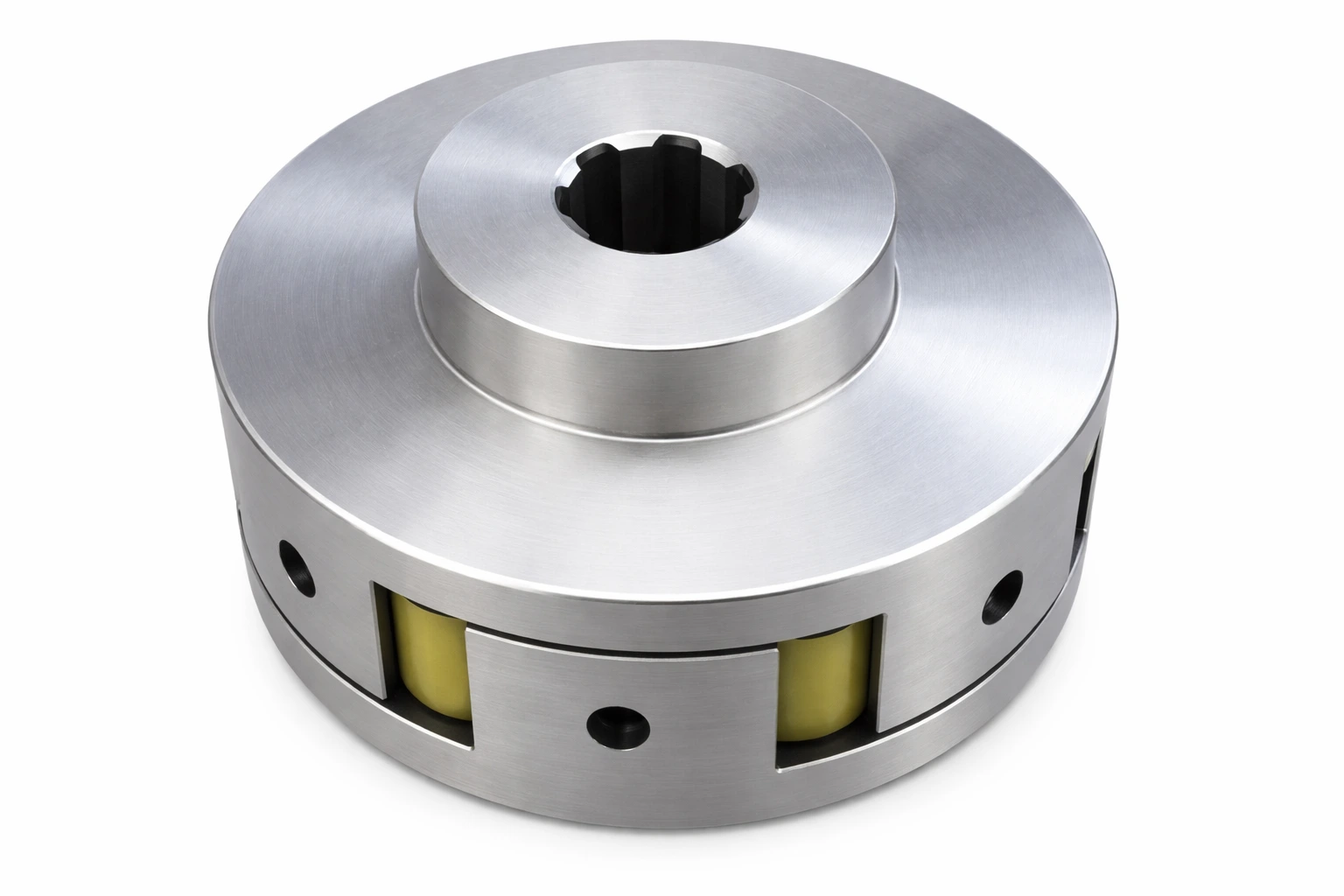

7. Beam (Helical) Couplings
A beam (helical) coupling is a single-piece slotted metal coupling that provides zero-backlash potential for small motion systems with low damping.
Structure: One-piece aluminum/stainless with helical cuts.
Pros
-
Compact, zero-backlash options
-
Good for precision positioning
-
No elastomer insert to replace
Cons
-
Low damping
-
Low torque compared with gear/grid
-
Excess misalignment can cause fatigue cracking
Typical applications
-
Stepper motors
-
CNC axis drives, small robots
